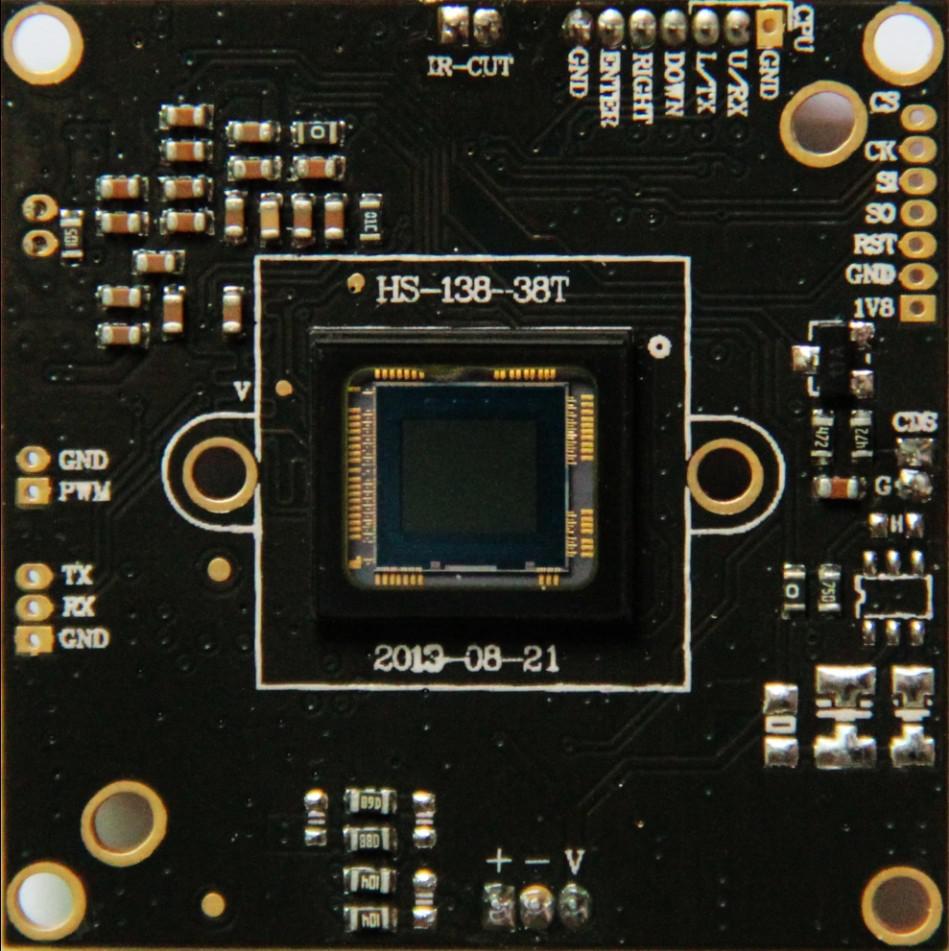

1200TVL HD 1/3 CMOS IR-CUT OSD Color Camera Board

* Color camera board
* The overall excellent performance, image quality is clear and bright
* Size: (L*W*H)38×38×13mm

Description:

Sensor	1/3" SONY 138+FH8520 CMOS color camera board
Signals System	PAL	NTSC
Total Pixels	PAL:1312(H)x1069(V)	NTSC:1312(H)x1069(V)
Effective Pixels	PAL:1280(H)x1024(V)	NTSC:1280(H)x1024(V)
Minimum illumination	0.1 LUX / F1.2
Horizontal Resolution	1200TVL
Scanning frequency	50Hz 60Hz
Gamma value	0.45
Electronic Shutter	1/50~ 1/100000s	1/60~1/100000s
SNR	>46dB
video output	1.0V p-p
Operating Temperature	-20 º C to 50 º C
Operating humidity	Relative humidity is lower than 95 %
Power	DC12V (±10%)

OSD:

Image	3D		On/Off
	Exposure mode		Global Exposure / Center-weighted / center weighted metering / BLC / light compensation money / Features Exposure
	White balance		PRO/TEMPORA/AI/GW/CCT
	Image enhancement		Sharpen	Details sharpening		Auto/Manual
				Edge sharpening		Auto/Manual
			Contrast	Gain mapping / auto / manual
			saturability		Auto/Manual
	mirror		On/Off
	Reversion		On/Off
	Reference brightness		0-250
	Digital AMP		0-5
Day & Night	Auto / external trigger / color / black and white
Regional Shield	Color	Mosaic / white / yellow / blue / green / magenta / red / blue / black
	area	0-7
Motion detection	Sensitivity	High / medium / low / weak
	area	0-3
Video starnard	PAL/NTSC
Language	Chinese/English

1200TVL HD 1/3 CMOS IR-CUT OSD Color Camera Board
Size: ( Unit: mm /0.3mm )

Condition:New
Model:HS-138-38T
Warranty 1 Years !

List Price:

Your price:
