Functions:
Wirelessly receive audio & video signal from 2.4GHz wireless cameras, and display on TV/monitor/MP4/DVR,etc.
Features:
* Standard AV output for TV set, MP4, DVR, etc.
* 2 frequency modes (2.3G & 2.4G) and 8 channels available to avoid interference from Wifi/bluetooth equipments, WLAN network,other 2.4GHz equipments.
* Small size (69 x 68 x 16 mm) & super light (80g only).
Relationship between working frequency and channel mode
Diagram:

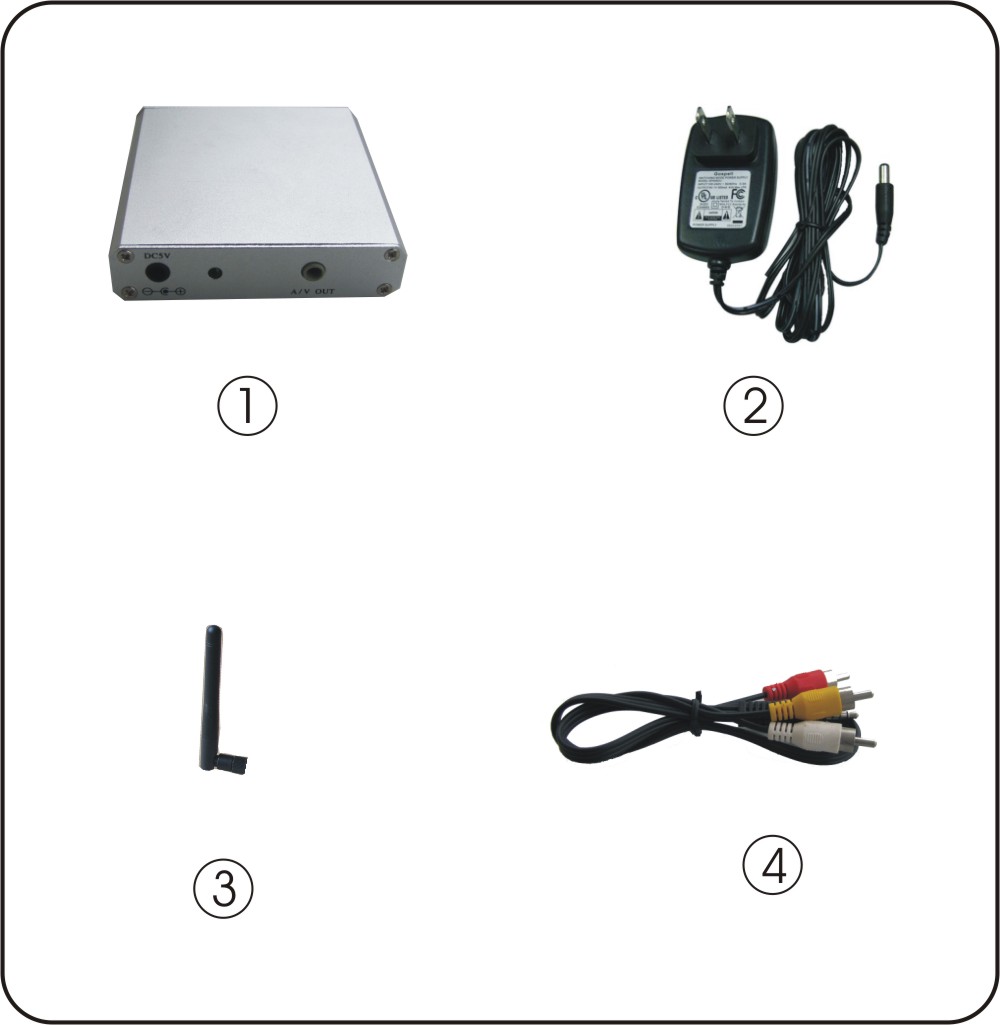

Package Includes:
Specification:
|
Receiving Frequency |
ISM 2,360MHz~2,520MHz |
| Audio subcarrier frequency |
6.0Mhz |
|
Demodulation Type |
FM |
|
Antenna |
50ohm SMA |
|
Receiving Sensitivity |
¡Ü -85dBm |
|
Video Output Level |
1Vp-p@75ohm, S/N>38dB |
|
Audio Output Level |
1Vp-p@1Kohm |
|
Power Supply |
+5VDC |
|
Consumption Current |
180mA |
|
Dimensions(W*L*H) |
68*69*16(mm)(Excluding antenna) |
|
Weight |
80g |
|
Operating Temperature |
10 C~+50 C/+14 F~+122 F |
|
Operating Humidity |
85%RH |
Package:
1* AC adapter
1* AV cable |
