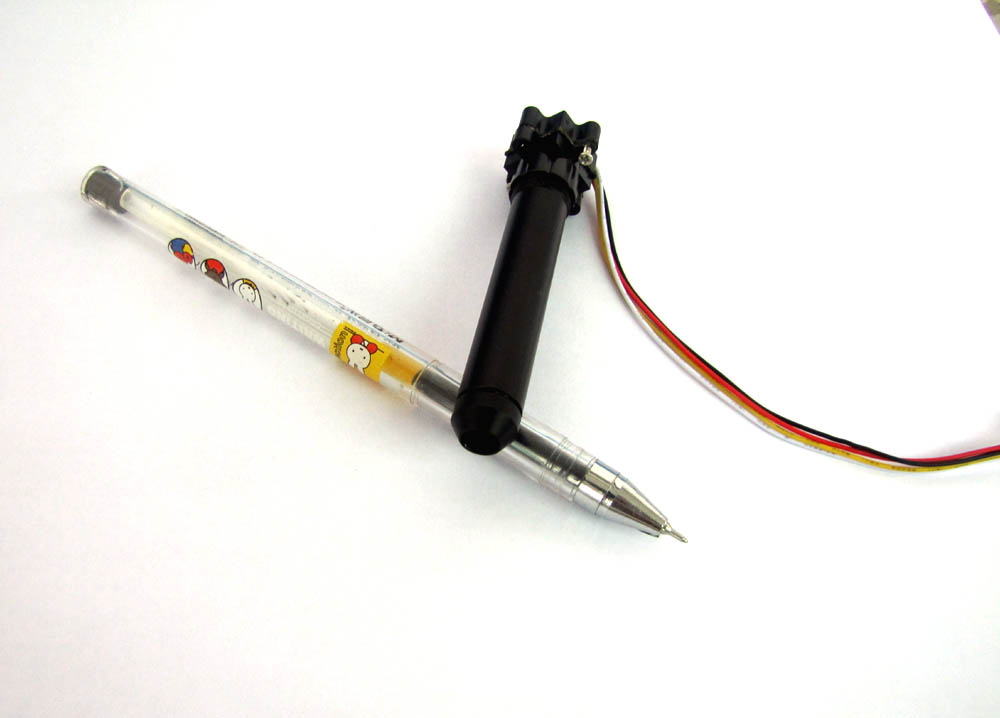

This mini camera comes with high sensitive CMOS sensor, which has excellent video function and very low illumination. It is of high stability and ultra long working life.

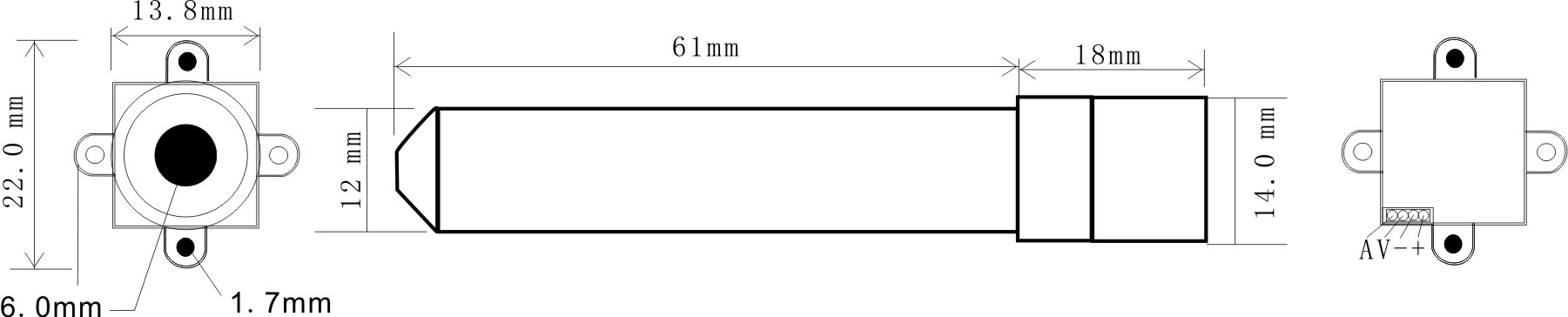

Small size(14X14X79mm) and light weight(13g), with two screw holes, it is easy to install into the ceiling, wall, cabinets, equipments, etc. for safe surveillance.0.008lux super low illumination, which can see clearly in almost complete darkness.8 degree view of angle for more precise image, which can see small text 10 meters away.
Main Features:
1. Small Size: easy to install into narrow room: ceilling,wall,cabinets equipments, etc.;
2. Light Weight with 2 screw holes: easy to install without causing unnecessary damage on object surface;
3. High resolution, high sensitivity, high SNR;
4. 8 degree view of angle for more precise image, which can see small text 10 meters away;
5. Day & night dual mode auto switch;
6. Low Current and power consumption;
7. CMOS sensor generation IV +DSP chip offer true color & HD video.
Specifications:
| Pick Up Element : |
Single chip 1/4 CMOS |
| Number of pixel : |
NTSC:720(H) x 480(V) |
PAL : 720(H) x 576(V) |
| Sensor dimension: |
3.584mm(H) x 2.688(V) |
| Horizontal Resolution: |
Approximately 520 TVL |
| Sensitivity: |
0.008Lux/F1.2 |
| Lens & View angle |
70mm F3.0 / 8 degree |
| S/N Ratio: |
48DB |
| Video Out : |
1.0V p-p/75ohm |
| Audio Out : |
1.0V p-p/1Kohm |
| Size (L x W x H) : |
14mm x 14mm x 79mm |
| Weight: |
13G |
| Work Current: |
5V: 65mA 12V: 32mA |
| Power Requirement : |
DC 3.3V-24V |
| Operating |
-10 to + 50 Degrees Celsius ,less than 90% RH |
| Connection: |
PIN1->Red DC5V PIN2->Black GND PIN3->Yellow VIDEO OUT PIN4->White AUDIO OUT |
Use Method:

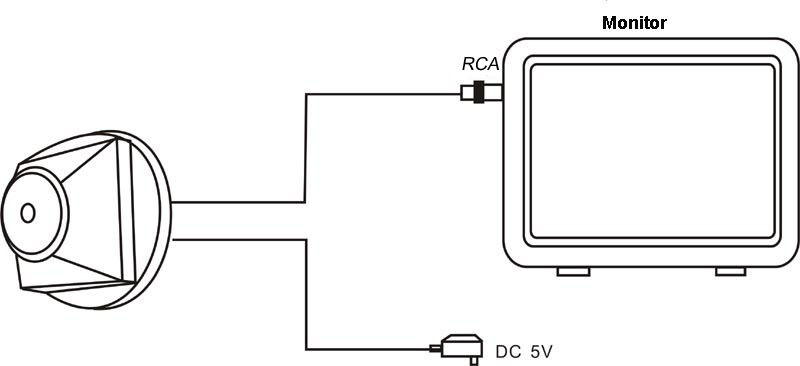

1£©Work with TV/monitor: Camera powered by provided AC adatper. Connect it to TV/monitor with RCA/BNC cable. Then watch live video & audio, or record, play on the TV/monitor;
2) Work with DVR(AV-IN jacked,e.g.TE968H)£ºCamera powered by DVR. Just directly connect the camera with DVR, it starts to work. Then watch live video & audio, or record, play, take pictures on DVR.
package:
1 x Mini camera
1 x cable
1 x AC adapter |
