The MINISTE806A wireless mini camera and dvr kit includes a very tiny wireless camera and a 5-inch LCD DVR, which adopt no-interference 5.8G frequency.It transmits 100 meters range. The size of camera is smaller than finger, only 8G!!!! It is suitable to install it into narrow and hard-to-reach room. Users can view the instant video on this 5 inch HD screen. They also can record videos and take pictures.Motion detect & loop recording are available for more convenience use.It is a good helper for safe & security.
Features:
* No-interference 5.8G frequency, no need to worry the interference from general-used 2.4G frequency;
* Camera has up to 24 channels for choice;

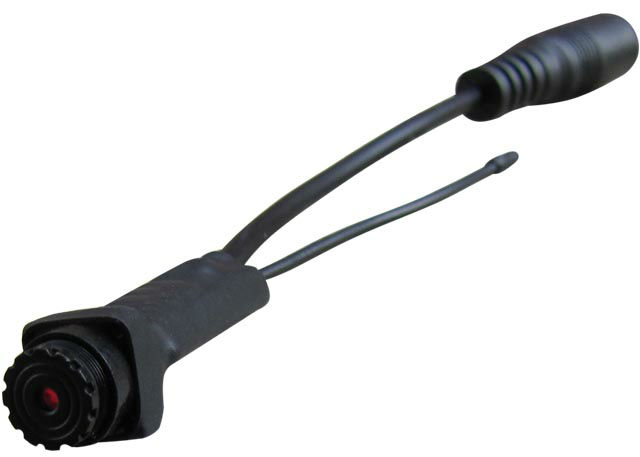

* Tiny size camera (smaller than finger), and tiny weight (only 8g);
* 0.008LUX super low illumination, which can see clearly under dim light;
* 90¡ã and 50¡ã view angle for your choice;
* Low power consumption assures the long time working life;
* 25mW transmitting power, which leads 100 meters wireless transmission range;
* High resolution 5-inch large screen DVR playback clear video instantly without connecting to computer;
* Motion Detection Available : Record only when there is movement detected(Replaced CCTV 24 Hrs Monitoring );
* No need any cable installation, just plug and play;
* Support SD Card(up to 32G) recording for any evidence needed.
How to use:
1. Connect camera with power supply, it starts to work. At the same time, power on DVR and set it in the same channel with camera.
2. Then real time audio & video starts to tranmit from camera to DVR for view or recording or taking pictures.
It is very easy to use , just connect the camera to AV power supply, it starts to continuous working. Just plug & play!
Note: This camera has one working channel. Please select the model with your requested frequency;

Wireless Mini Camera SPECIFICATION:
| Working frequency |
G1-within 5.8G |
CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
Working Channel: 1 of 24 |
| G2-Beyond 5.8G |
CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz |
| G3-Within 5.8G |
CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz |
| Antenna |
External antenna |
| RF OUTPUT POWER |
25mW |
| TRANSMISSION RANGE |
100 meters |
| SENSOR DIMENSION |
NTSC:720(H) x 480(V) |
PAL:720(H) x 576(V) |
| HORIZONTAL RESOLUTION |
480TV Lines |
| SENSITIVITY |
0.008Lux/F1.2 |
| LENS & VIEW ANGLE |
0.5mm F1.2 / 90 ¡ã |
| SIZE(L x W x H) |
39.5mm x 10.5mm x 10.5mm |
| WEIGHT(g) |
8g |
| WORK CURRENT |
230mA |
| POWER REQUIREMENT |
DC 4V |
| OPERATING TEMPERATURE |
- 20¡ãC ~ + 50¡ãC ,Relative humidity 85% |
Wireless DVR Feature:
* Mini size and portable recorder with fashionable & new design;
* 5-inch super large HD screen (800X480pix), which provides clear and smooth image;
* Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
* Supports storage up to 32G TF card, which records up to 32 hours;
* 8 channels auto/manual switch;
* Folding hidden external antenna assures excellent wireless receiving;
* Supports AV IN function: receiving signal from wired cameras;
* Photo function: it can take, review & store pictures;
* Supports intelligent motion detect video recording;
* Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
* Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
* Support power-saving mode: automatic shutdown, automatic off-screen;
* Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
* It¡¯s of high compatibility, which supports almost all computer operating system, including MAC;
* Supports multi-language.
Wireless DVR Receiver Specification:
| Items |
Value |
| Wireless Receiving |
Within 5.8G-A (8 channels) |
CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. |
| CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
| Within 5.8G-B (8 channels) |
CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. |
| CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz |
| Beyond 5.8G-C (8 channels) |
CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. |
| CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz |
|
Sensitivity |
-92dB |
|
Receiving distance |
100 meters |
| AV IN |
TV system |
NTSC / PAL |
| Output voltage |
3.6-4.2 V |
| HD 5-inch LCD screen |
Active area |
108mm(W) X 64.8mm(H) |
| Resolution |
800 X 480 Pixel |
| Luminance for LCM |
200 cd/M2 |
| Cape clear 5-inch LCD screen |
Active area |
118mm(W) X 62.8mm(H) |
| Resolution |
480 X 272 Pixel |
| Luminance for LCM |
300cd/M2 |
| Video |
Resolution |
720*576 / 640*480 |
| Video compress |
MPEG-AVI 30fps |
| Play format |
MPEG-AVI |
| Audio |
Frequency |
20HZ-20KHz stereo |
| Earphone Output |
Left: 20MW+ right 20mW [16O](suit to largest volume) |
| Speaker |
1W |
| Photo |
Format |
JPG/JPEG |
| Storage |
External SD card |
TF card 1GB-32GB(optional) |
| 32GB recording time |
10-32 hours |
| 1GB photos |
15625pcs |
| Operating system |
PC |
Windows & Mac OS |
| Port |
USB 2.0 |
| Language |
Multiple |
| Power |
Voltage |
DC 5V |
| Current(receiving mode) |
660MA |
| Current( recording mode) |
680MA |
| Current(recording with off-screen mode) |
340MA |
| AC adapter |
DC 5V 2A |
| Built-in battery |
Li-battery 3200mAh |
| Standby time |
Wireless record |
>=9.5 hours(off-screen);>=5hours(on-screen) |
| Wired record |
>=12 hous(off-screen);>=6hours(on-screen) *LED camera not included. |
| Size (L x W x H) |
131mm x 86mm x 18mm |
| Weight(g) |
205g |
Package :
* DVR * 1pcs
* Camera * 1pcs
* User Manual * 1pcs
* Stereo earphone * 1pcs
* USB Cable * 1pcs
* AC Adapter * 1pcs
* Back holder for installation * 1pcs
|
