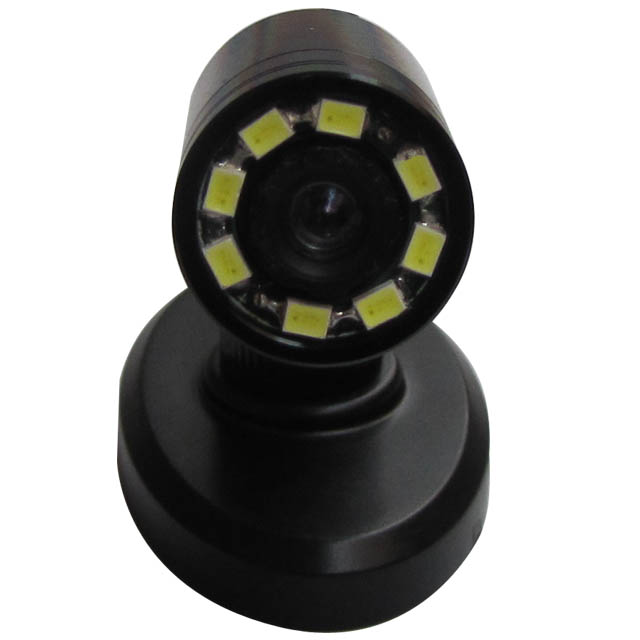

This camera comes with high sensitive CMOS sensor, high luminous flux (F1.2) and wide view angle (90¡ã) mini lens. 8 controllable high bright LED lamps enable the effective recording distance up to 8 meters, and surveillance area up to 100 square meters in the complete darkness. This series of products are of small volume and light weight, high stability and ultra long working life. They are very suitable for day & night hidden surveillance, project monitoring, and equipment maintenance, etc.
Main Features:
* Small Size: easy to install into narrow room and slim tube, etc.
* Light Weight: easy install without causing unnecessary damage on object surface
* 8 high bright LED lamps enable the effective recording distance up to 8 meters
* High luminous flux (F1.2) and wide view angle (90¡ã) mini lens
* High resolution, high sensitivity, high SNR
* Surveillance area up to 100 square meters in the complete darkness
* Day & night dual mode auto switch
* 520TVL Digital chip synthesis technology offers true color & HD video
* Low Illumination, high quality video record function
* Low Current and power consumption
* CMOS sensor generation IV+DSP chip offer true color & HD video
Specification:
| PICK UP ELEMENT |
Single chip 1/3 CMOS |
| SYSTEM |
NTSC |
|
| NUMBER OF PIXEL |
NTSC:656(H)¡Á492(V) |
|
| SENSOR DIMENSION |
4.75mm(H)¡Á3.55mm(V) |
| HORIZONTAL RESOLUTION |
Approximately 520TV Lines |
| SENSITIVITY |
0.00Lux/5m |
| LENS & VIEW ANGLE |
0.5mm F1.2 / 90 ¡ã |
| LED Control |
1:Light(Default) 2:On-Off 3:Self-Motion |
| LED |
8 LED:17600mcd |
| VIDEO OUT |
1.0V p-p/75ohm |
| LED Control OUT |
1:AV(Default) 2:On-Off 3:Photosensitive Resistor |
| WEIGHT |
Camera:12g |
Stand:15g |
| WORK CURRENT |
DC5V:70mA(Lamp Off)/185mA(Lamp On);DC12V:35mA(Lamp Off)/ 85mA(Lamp On) |
| POWER REQUIREMENT |
DC5V:(3.6-5V ) DC12V:(3.6-24V ) |
| OPERATING TEMPERATURE |
- 10¡ã C ~ +50¡ãC ,less than 90% RH |
| Connection |
PIN1=>Red DC5V PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=>White LED Control OUT | Contents:
* mini camera X1; * stand X1; * AC adapter X1 |
