Usage:
Plug and play !
Just plug it to USB port of AC adapter,computer,camera starts to work. And at the same time, you can use any 2.4GHz wireless receivers (like web video server, wireless DVR/ AV receiver/ USB receiver) to receive and record real time video and audio.8 channels available for your choice.
2.4GHz Mini Camera Main Features:
1. Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
2. Wireless transmission,not limited by cable.Very convenient to put it anywhere.Just plug & play.
3. High resolution(786X576pix;520TVL), high sensitivity, high SNR;
4. Day & night dual mode auto switch and continuous working;Low Illumination(0.008lux), high quality video record function;
5. Wide view angle(90 degree);
6. Strong output power brings long transmission range up to 150m(L.O.S.)
7. Convenient power supply and continuous working.
8.Encrypted frequency(2.3G) available to avoid interference from Wifi equipments,WLAN network, bluetooth equipments;and other general 2.4GHz equipments can't receive your signal,protect privacy well.
Specification:
| Frequency |
2.4G |
2414Mhz(CH1) 2432MHz(CH2) 2450MHz(CH3) 2468MHz(CH4) |
Working channel:1 of 8 |
| 2.3G |
2370Mhz(CH1) 2390MHz(CH2) 2490MHz(CH3) 2510MHz(CH4) |
| Audio Subcarrier Frequency |
6.0Mhz |
| Antenna |
2.4GHz built-in antenna |
| RF Output Power |
100mW |
| Transmission Range |
150 meters |
| Total Pixels |
NTSC:656(H)¡Á492(V) |
PAL:786(H)¡Á576(V) |
| Horizontal Resolution |
520TV Lines |
| Minimum Illumination |
0.008Lux/F1.2 |
| Lens & View angle |
90 ¡ã |
| S/N Ratio |
©ƒ48dB |
| Size (L) |
1.8m {lens size (L x D)£º27mm X 15mm } |
| Net Weight£¨g£© |
50g |
| Current |
160mA |
| Voltage |
DC 5V |
| Operation Temperature |
- 20¡ãC ~ + 50¡ãC £¬Relative Humidity:85©‡ |

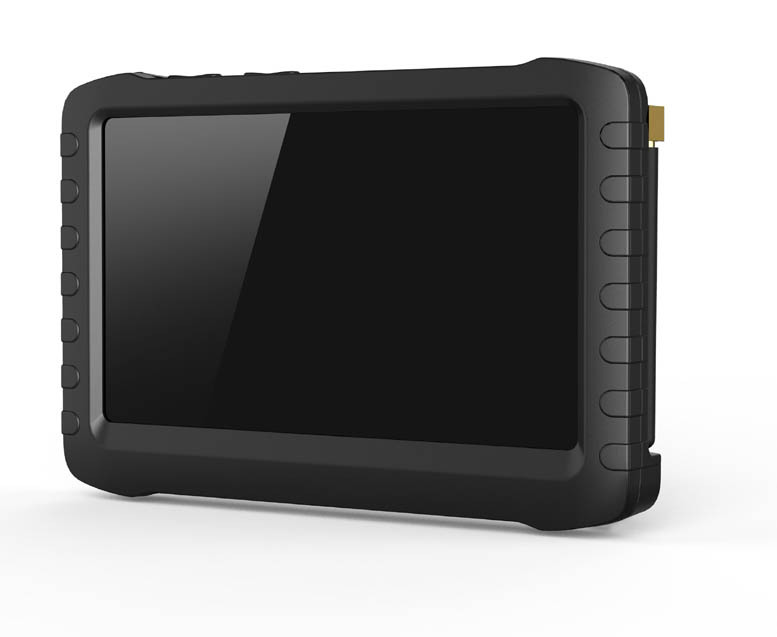

HD 2.4GHz wireless mini DVR :
* 5-inch super large HD screen (800X480pix), which provides clear and smooth image,mini size and portable recorder with fashionable & new design;
* Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
* Supports storage up to 32G TF card, which records up to 32 hours;
* Supports 2.4GHz & 5.8GHz wireless frequency;
* 8 channels auto/manual switch;
* Folding hidden external antenna assures excellent wireless receiving;
* Supports AV IN function: receiving signal from wired cameras;
* Photo function: it can take, review & store pictures;
* Supports intelligent motion detect video recording;
* Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
* Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
* Support power-saving mode: automatic shutdown, automatic off-screen;
* Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
* It's of high compatibility, which supports almost all computer operating system, including MAC;
* Supports multi-language.
HD 2.4GHz wireless mini DVR Specifications:
| Items |
Value |
| Wireless Receiving |
2.4GHz ¨C8 channels |
CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. |
|
CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz |
|
|
| ¡¡ |
|
| ¡¡ |
|
|
| ¡¡ |
|
| ¡¡ |
Sensitivity |
-92dB |
| ¡¡ |
Receiving distance |
100 meters |
| AV IN |
TV system |
NTSC / PAL |
| Output voltage |
3.6-4.2 V |
| HD 5-inch LCD screen |
Active area |
108mm(W) X 64.8mm(H) |
| Resolution |
800 X 480 Pixel |
| Luminance for LCM |
200 cd/©O |
| Cape clear 5-inch LCD screen |
Active area |
118mm(W) X 62.8mm(H) |
| Resolution |
480 X 272 Pixel |
| Luminance for LCM |
300cd/©O |
| Video |
Resolution |
720*576 / 640*480 |
| Video compress |
MPEG-AVI 30fps |
| Play format |
MPEG-AVI |
| Audio |
Frequency |
20HZ-20KHz stereo |
| Earphone Output |
Left: 20MW+ right 20mW [16O](suit to largest volume) |
| Speaker |
1W |
| Photo |
Format |
JPG/JPEG |
| Storage |
External SD card |
TF card 1GB-32GB(optional) |
| 32GB recording time |
10-32 hours |
| 1GB photos |
15625pcs |
| Operating system |
PC |
Windows & Mac OS |
| Port |
USB 2.0 |
| Language |
Multiple |
| Power |
Voltage |
DC 5V |
| Current(receiving mode) |
660MA |
| Current( recording mode) |
680MA |
| Current(recording with off-screen mode) |
340MA |
| AC adapter |
DC 5V 2A |
| Built-in battery |
Li-battery 3200mAh |
| Standby time |
Wireless record |
¡Ý9.5 hours(off-screen); ¡Ý5hours(on-screen) |
| Wired record |
¡Ý12 hous(off-screen); ¡Ý6hours(on-screen) *LED camera not included. |
| Size (L x W x H) |
131mm x 86mm x 18mm |
| Weight(g) |
205g |

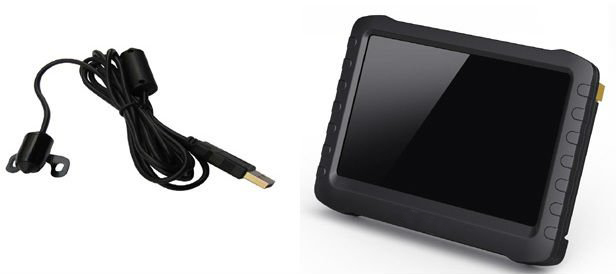

Package:
1 * Wireless DVR
1 * Mini Camera
1 * Power adapter
1 * USB line
1 * Install back clip
1 * specification
|
