Wireless IP camera 2.4G Wireless Network Video Server

Support 2.4GHz wireless receiving (8 channels), constitutes wireless IP camer

Wireless IP camera 2.4G Wireless Network Video Server


This wireless network video server is equipment for receiving 2.4GHz wireless audio & video and real time transmitting on Ethernet. The NVS offers a smooth video transmission and higher level of resolution, with high-performance SOC (ARM+DSP) specially designed for multimedia processing, and high performance operating system and sound video frequency compression algorithm. The NVS is available multiple ports for function expansion so as to meet your higher requirement; with the built-in WEB server, it can enhance the performance of the traditional monitoring system, and provide network connectivity for publishing monitoring image on a safe LAN or Internet. IP camera management, configuration, monitor, etc. is easy to operate through the Internet Explore(IE browser).  and the operation is rather simple and convenient.

Function introduction:

*  Support 2.4GHz wireless receiving (8 channels), constitutes wireless IP camera;
*  Support AV input of wired camera, constitutes wired IP camera;
*  Support D1, 2CIF, CIF, QCIF,(704*576¡¢704*288¡¢352*288¡¢176*144) resolution;
*  Support H.264, MJPEG image compression encoding;
*  Support PTZ control, alarm I/O, two-way Talkback, third-class user rights, with perfect functions;
*  Support any PTZ protocol ; it can definite PTZ protocol document to upgrade and update;
*  Two-way voice Talkback, support external audio input and output;
*  Complete network protocol, support RTSP, VLC£¨PS/TS£© Media Protocol;
*  Support the mobile phone for remote monitoring;
*  Support WIFI wireless transmission, support network search function and support WEP/WPA/WPA2 cipher mode;
*  Support front-end SD card for memory

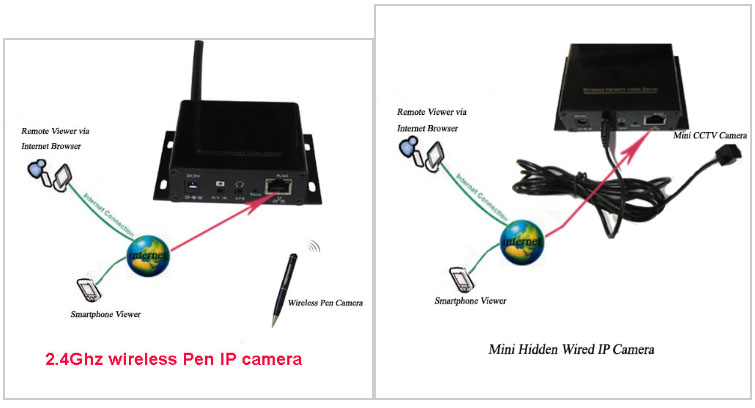

Wireless IP camera 2.4G Wireless Network Video Server


Wireless IP camera 2.4G Wireless Network Video Server camera

Technical specifications:

2.4GHz Wireless Receiving
Receiving Frequency ISM 2,360MHz~2,520MHz
Audio subcarrier frequency Default£º6.0Mhz Optional:6.5MHz
Channel Support 8 channels
Receiving Sensitivity ¡Ü -85dBm
Antenna 50ohm SMA
AV INPUT¡¡
Video Input Level 1Vp-p@75ohm
Audio Input Level 1Vp-p@1Kohm
Power Supply output DC5V
Compression standard ¡¡
Video frequency compression standard H.264/MJPEG
Compression output code rate 32K¡«4Mbps/1M¡«16Mbps
Audio frequency compression standard G.711
Audio frequency output code rate 64Kbps
Image¡¡
Image size 704*576£»704*288£»352*288£» 176*144
¡¡ 704*480£»704*240£»352*240
Frame Rate 1-30f/s
Function ¡¡
2.4GHz wireless receiving Support
AV input of wired camera Support
Mobile phone monitoring Support
Network protocol PPPoE¡¢DHCP¡¢TCP/IP¡¢HTTP¡¢UDP¡¢RTP/RTCP¡¢RTSP¡¢UPNP¡¢SMTP¡¢FTP¡¢SIP¡¢DDNS¡¢DNS
Motion detection Support
Area shield Support
SD Card local storage Support
With WIFI for optional (it is optional to use high power WIFI module) Support encryption: wep64,wep128,wpa,wpa2
Wireless power: 13dbm(54M) (high power module, wireless power: 20dbm/54M)
Wireless distance: <=70m (high power module<=300M)
General specifications
Working temperature -10¡æ¡«65¡æ
Working humidity 85%RH or less
Power source DC5V/1A
Power consumption <3W
Size (LXWXH) 7.5cm(L)x 10.5cm(W) x 2.9cm(H)
Weight 180g

Package:

1 * Wireless Network Video Server
1 * Adapter
1 * CD

Condition:New
Model:SPYV8IWV
