* 10X optical zoom auto focus camera
* 1/4" COLOR ZOOM CCD CAMERA
* Mintron MTV-54G15P 10X 1/4 COLOR ZOOM CCD CAMERA
* ATW: Auto tracking white balance.
* AWC: One push lock white balance.
Features:
| MODELNO. |
MTV-54G15N |
MTV-54G15P |
| TV SYSTEM |
NTSC |
PAL |
| IMAGE SENSOR |
1/4-inch CCD Image Sensor |
| CCD TOTAL PIXELS |
~ 270K |
~ 320K |
| SCANNING SYSTEM |
525 lines, 60 fields/sec |
625lines, 50 fields/sec |
| SYNC SYSTEM |
Internal / External(VD-Lock / ”Ą1Hz) |
| MINIMUMILLUMINATION |
Legacy mode |
1.5 Lux F1.8 |
| Star light Mode |
0.05 Lux F1.8 |
| RESOLUTION |
380TVL |
| S / N RATIO |
46dB ( MIN) / 50dB ( TYP ) (AGC OFF,r=1,APC OFF,Y-OUT) |
| WHITE BALANCE |
Mode |
AUTO (ATW or AWB) |
| Range |
3200 ~ 9600 ºK |
| B.L.C. FUNCTION |
ON/OFF |
| GAMMA CORRECTION |
0.45 /1 |
| AGC |
AUTO (24dB max |
| ALC |
AUTO / FIX |
| IMAGE NEGATIVE |
Select by OSD menu |
| MONITION DETECT |
48 zone (select by OSD) |
| CROSS LINE |
ON/OFF Select by OSD menu (position adj. by software) |
| FREEZE FUNCTION |
Alarm in trigger or Select by OSD |
| ELECTRONIC SHUTTER |
AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step |
| LENS |
10X optical ZOOM LENS£¬F1.8~2.9£¬f=4.2~42.0mm |
| ZOOM |
100X (10X optical 10X Digital) |
| FOCUS |
Auto / Manual |
| POSITION |
64 Position (Zoom£¬Focus) |
| VIDEO OUTPUT |
Composite & Y/C output 1.0Vp-p at 75 ohm |
| CONTROL FUNCTION |
Programmable RS-232 and RS-485 (*Driver Option) * RS-485 will be standard offer if not indicate one of driver options when Order. |
| OSD CONTROL |
Zoom, Focus, IRIS, WB, AGC, Position, C-Gain, APC Gain |
| OSD LANGUAGE SELECT |
ENGLISH / CHINESS_Simp / JAPANESE |
| OPERATION TEMPERATURE |
-10”ę TO 50”ę |
| OPERATIONAL HUMIDITY |
within 85%RH |
| POWER SUPPLY |
DC12V”Ą1V / 3.6W(Max) |

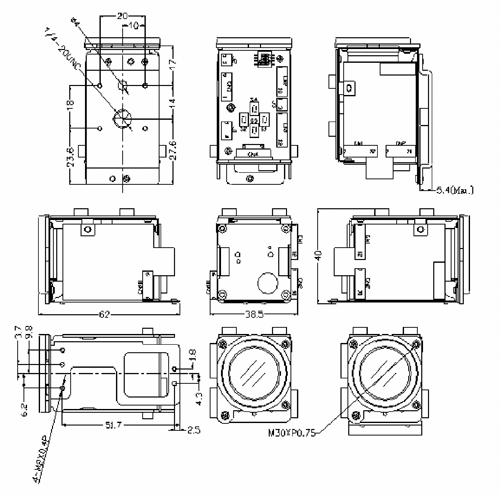

Dimensions :
 |
|
Condition:New
Model:MTV-54G15P |
