| MODEL NO. |
MTV-64G5HN |
MTV-64G5HP |
| TV SYSTEM |
NTSC |
PAL |
| IMAGE SENSOR |
1/4-inch CCD Image Sensor |
| CCD TOTAL PIXELS |
811(H) X 508(V) |
795(H) X 596(V) |
| SCANNING SYSTEM |
525 lines, 60 fields/sec |
625 lines, 50 fields/sec |
| SYNC SYSTEM |
Internal / VD-Lock |
| MINIMUM ILLUMINATION |
Legacy mode |
1.5 Lux ( F1.6, 5600ºK) |
| Star light Mode |
0.07 Lux ( F1.6, 5600ºK ) |
| RESOLUTION |
520TVL |
| S / N RATIO |
48dB ( MIN ) / 52dB ( TYP ) (AGC OFF£¬r=1£¬APC OFF£¬Y-OUT) |
| WHITE BALANCE |
Mode |
ATW / AWB / FIX ( Zero color rolling) |
| Range |
3200 ~ 9600 ºK |
| B.L.C. FUNCTION |
Super BLC,48 zone BLC |
| GAMMA CORRECTION |
0.45 /1 |
| AGC |
AUTO (18dB max) |
| ALC |
AUTO / FIX |
| IMAGE NEGATIVE |
Select by OSD menu |
| CROSS LINE |
ON/OFF Select by OSD menu (position adj. by software) |
| FREEZE FUNCTION |
Alarm in trigger or Select by OSD |
| ELECTRONIC SHUTTER |
AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step |
| LENS |
22X optical ZOOM LENS , F1.6~3.8,f=4.0~88mm |
| MOTOR- ZOOM / FOCUS / IRIS |
500,000 times life |
| ZOOM |
220X (22X optical 10Xdigital) |
| FOCUS |
Auto / Manual |
| POSITION |
64 Position (Zoom£¬Focus) |
| VIDEO OUTPUT |
Composite & Y/C output 1.0Vp-p at 75 ohm |
| CONTROL FUNCTION |
RS-232C/RS-485(selectable) , OSD control |
| OSD LANGUAGE SELECT |
ENGLISH / CHINESS_Simp / JAPANESE |
| COMMUNICATION BAUD RATE |
9600 BPS |
| OPERATION TEMPERATURE |
-10”ę TO 50”ę |
| OPERATIONAL HUMIDITY |
within 85%RH |
| POWER SUPPLY |
DC12V”Ą1V / 3.6W(Max) |

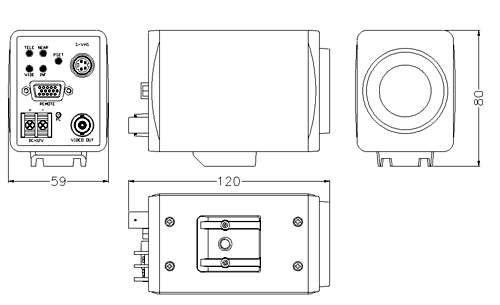

| DIMENSIONS |
120mm(L) X 59mm(W) X 80mm(H) |
