800TVL HD CMOS Camera Features:
* 1/4" CMOS image sensor

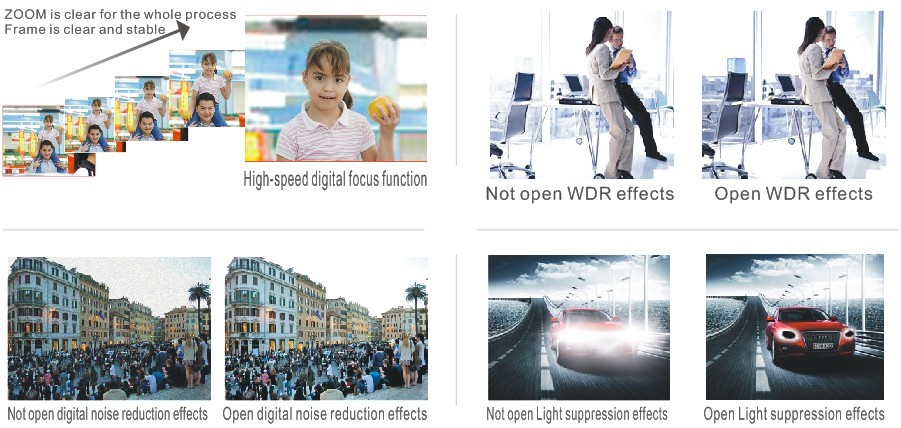

* WDR, Digital noise reduction , Light suppression
* Digital high speed focus, continuous track
* Super low illumination and power consumption.
HD CMOS Camera Specifacations:
| Model No . |
CET800L |
| Signal model |
PAL/NTSC |
| Image sensor |
1/4" CMOS |
| Effective pixel |
1020(H) x 508(V) |
| Horizontal resolution |
800TVL |
| Minimum illumination |
Color:0.01Lux B/W£º0.001Lux/0Lux |
| WDR |
Yes |
| Sync system |
Internal sync |
| Focus length |
3.9~85.8mm |
3.2~86.4mm |
3~90.0mm |
| Optical focus |
22X |
27X |
30X |
| Focus |
Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function |
| Gain Control |
Auto/Manual |
| White balance |
Auto |
| Iris |
Auto |
| S/N radio |
>60dB(Enhanced) |
| Electronic shutter |
PAL:1/50~1/10000 seconds NTSC:1/60~1/12000 seconds |
| Video output |
1.0Vp-p 75 ¦¸ |
| Power cut memory restore |
Yes |
| Language |
Chinese/English |
| Screen menu |
AWB , Digital noise reduction , Light suppression,Mirror |
| Control |
SONY/LG |
| Interface mode |
Nine -pin connector |
| Gama modulus |
0.45 |
| Power supply |
DC12V,90~120mA |
| Work temperature |
-20¡ãC~+70¡ãC |
| Dimension |
W50mmXH58mmXL90mm |
| Weight |
300g | |
