When high quality imaging and speed are of the essence, turn to the compact champion, SONY XC-HR50, for the solution. The new sony XC-HR50 is a compact, lightweight, black and white video camera incorporating the latest 1/3 Type Interline Transfer (IT) Progressive Scan CCD with HAD technology providing 659 (H) x 494 (V) effective picture elements and incorporating a C-mount type lens mount. The sony XC-HR50 can capture high quality images at fast frame rates (twice the speed of Sony's popular XC-55 camera) and is ideal for demanding applications such as semiconductor production and high speed assembly line inspection.
SONY XC-HR50 Highlights:
* 1/3 Type IT Progressive Scan CCD
* High frame rate - 60 full frames per second/120 binned frames per second
* High rate scanning to increase vertical scanning frequency compared to the XC-55 - up to 200 partial frames per second
* Partial Scan controlled by VD pulse length
* Square Pixels
* Minimum Illumination of 1 lux @ F1.4
* Small, lightweight one-piece body - 29 (W) x 29 (H) x 30 (D)/50g

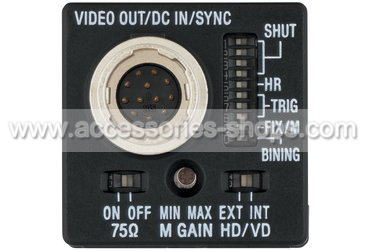

* All controls are external for easy configuration
* Flexible Trigger Shutter Interface - Exposure set with switches or pulse width
* Rugged and Robust -10G vibration tolerance/70G shock resistant
* C-Mount / No IR cutoff filter
SONY XC-HR50 Specifications:
| Camera Specifications
| Detail: |
| Image Device |
1/3 type IT Progressive Scan CCD |
| Image Device Value |
Monochrome |
| Cell Size |
7.4 ¦Ìm x 7.4 ¦Ìm |
| Effective Pixels |
659 x 494 |
| Effective Lines |
648 x 494 - VGA |
| Camera Interface |
Analog |
| Lens Mount |
C-Mount |
| Flange Back |
17.526 mm |
| Vertical Frequency |
31.468 kHz ¡À1 % |
| Resolution |
VGA |
| Sync System |
Int/Ext |
| External Sync Signal |
HD/VD |
| Jitter |
Less than 20 ns |
| Scanning System |
Progressive Scan |
| Gain |
Fix/Manual |
| Gamma |
OFF fixed |
| Normal Shutter |
Normal shutter
Restart/Reset
External trigger shutter (Mode 1/MODE 2) |
| External Trigger Shutter / Speed |
1/4 to 1/100000s |
| External Trigger |
Polarity: +
Width: 2 ¦Ìs to 250ms
Input impedance: 10 k¦¸ or more (H: +2 to +5.0V
L: 0 to 0.6V)
Polarity: +
Width: 2 ¦Ìs to 250ms |
| High Rate Scanning |
R/R Mode Binning Off:
Max 240 frames/s
R/R Mode Binning On:
Max 360 frames/s
External trigger shutter mode Binning Off :
Max 240 frames/s
External trigger shutter mode Binning On:
Max 360 frames/s |
| Output Signal Frequency |
59.94 Hz (normal mode)
119.88 Hz (binning mode) |
| Shutter Speed |
OFF to 1/30000s switchable at rear panel |
| Video Output Specifications
| Detail: |
| Horizontal Resolution |
500 TV lines |
| Minimum Illumination |
1.0 lux (F1.4
Manual gain Max) |
| Output Connector |
12 pin (New EIAJ) |
| S/N Ratio |
58 dB |
| Sensitivity |
400 lux F5.6 (Fix Gain 0 dB) |
| Video Output |
1.0 Vp-p
Sync negative
75
Unbalanced |
| General Specifications
| Detail: |
| Dimensions (W x H x D) |
1 3/16 x 1 3/16 x 1 3/16 inches
(29 x 29 x 30 mm) |
| Weight |
50 g (2 oz) |
| Power Requirements |
DC 12 V (+10.5 to 15 V) |
| Power Consumption |
1.8 W |
| Operating Temperature |
-5 to 40¡ãC (23 to 113 ¡ãF) |
| Storage Temperature |
-30 to 60 ¡ãC (-22 to 140 ¡ãF) |
| Operating Humidity |
20 to 80 % (no condensation) |
| Storage Humidity |
20 to 95 % (no condensation) |
| Vibration Resistance |
10G (20 Hz to 200 Hz) |
| Shock Resistance |
70 G |
| Regulatory Compliance |
UL 6500
FCC Class A Digital Device
CE (EN61326/97+A1/98)
AS4251.1+A4252.1 |
|
