Overview:

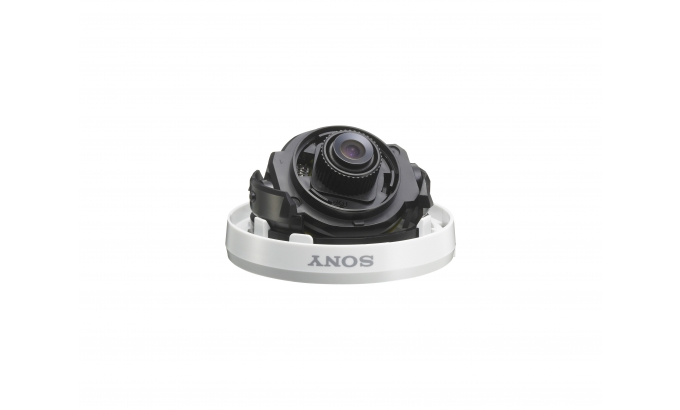

The Sony SSC-N11 is a high resolution analogue mini-dome security camera with a 1/3¡± Super HAD CCD II sensor, electrical Day/Night function, ATR-Lite, iBLC and a fixed focal length of 3mm.
With a horizontal resolution of 540 TV lines and high sensitivity, this cleverly designed compact camera is ideal for a wide range of applications ¨C achieving optimum surveillance even in difficult lighting conditions.
Specifications:
|
|
|
| Camera |
¡¡ |
| Image device |
1/3-type Super HAD CCDII |
| Number of effective pixels (H x V) |
440,000 pixels (752 x 582) |
| Signal system |
PAL standard |
| Horizontal resolution |
540 TV lines |
| S/N ratio |
More than 55 dB (AGC Off) |
| Minimum illumination |
Color: 0.55 lx, B/W: 0.3 lx (F2.0, 50IRE); Color: 0.35 lx, B/W: 0.2 lx (F2.0, 30IRE) |
| Video output |
VBS:1.0Vp-p |
| Synchronization |
Internal lock |
| Gain control |
Auto (on/off) |
| White balance |
ATW (2000K to 10000K) |
| Lens type |
Fixed focal lens |
| Zoom ratio |
Fixed |
| Horizontal viewing angle |
95.9 degree |
| Focal length |
f=3.0 mm |
| F number |
F2.0 |
| Minimum object distance |
400 mm |
| Iris |
Fixed |
| Panning range |
340 degree |
| Tilting range |
¡À45.3 degree |
| Swivel rotation |
340 degree |
| Camera Features |
¡¡ |
| Day/Night |
Yes (Electrical D/N) |
| Noise reduction |
Yes (2D NR) |
| Back light compensation |
Yes (iBLC) |
| Automatic tone reproduction |
Yes (ATR-Lite) |
| General |
¡¡ |
| Mass |
125 g (4.4 oz) |
| Dimensions |
84 mm x 53 mm (3 3/8 inches x 2 1/8 inches) |
| Power requirement |
DC12 V ¡À10% |
| Power consumption |
Max. 0.9 W |
| Operating temperature |
-10 ¡ãC to +50 ¡ãC |
| Storage temperature |
-40 ¡ãC to +60 ¡ãC |
| Operating humidity |
20 % to 80 % |
| Storage humidity |
20 % to 95 % |
| Supplied accessories |
Operating instructions |
Features:
1.Compact and stylish design
A compact, stylish and discreet design that compliments any surveillance environment.
2.Super high resolution
With a horizontal resolution of 540 TV lines, the SSC-N11 produces detailed, sharp images.
3.Electrical Day/Night function
This ensures the camera is operating with the optimum sensitivity for both day and night conditions.
4.ATR-Lite
ATR-Lite (Adaptive Tone Reproduction) improves the ability to resolve detail where both high and low luminance areas exist in the same picture.
5. iBLC
iBLC (intelligent backlight compensation function) can identify and compensate for areas in the image that are affected by strong light coming from a region in front of the camera e.g. a window. It will adjust exposure to retrieve detail in areas that would otherwise have been under-exposed.
6. ATW
ATW is Sony¡¯s white balance system. It automatically adjusts the image to give an overall neutral colour balance.
7. Easy viewing angle adjustment
Inside the protective dome, the camera has a three-way hinge that allows horizontal, vertical and swivel rotation. This provides a very high degree of flexibility, and allows the camera to be installed on vertical as well as horizontal surfaces.
|
