The Watec WAT-137LH Camera is a professional grade CCTV camera capable of producing and maintaining high resolution images in both ideal and challenging lighting environments. Watec WAT-137LH is achieved through the use of a 1/3" IT CCD along with a number of electronic picture controls. This level of performance coupled with the camera's compact profile makes it particularly well suited for residential or commercial applications requiring dependable yet minimally intrusive security monitoring.
Watec WAT-137LH Camera Features:
* Outstanding image quality with 1/3" CCD and 570 lines of resolution
* Compact and lightweight design
* Auto iris function ensures properly exposed images in fluctuating light levels
* Accepts industry standard CS mount lenses
* Illumination High Resolution
* Power synchronization adjustment
* AC24V/DC12V power supply automatically detects
Watec WAT-137LH Specifications:
| Model |
WAT-137LH |
| CCD |
1/3¡å |
| Effective Pixels |
440K |
| Synchronizing System |
inter-sync Power synchronization |
| Scanning system |
2:1 |
| video output |
1Vpp-75¦¸ |
| Horizontal resolution |
570TVL |
| minimum illumination |
0.002LuxF1.4(AGC High) |
| automatic gain control |
5~42dB |
| SNR |
50dB |
| gray properties |
¦Ã¨P0.45 |
| Backlight compensation |
ON |
| Auto electronic shutter |
Fixed electronic shutter OFF(1/50)
Flicker Filter F.L(1/120)
Auto electronic shutter EI(1/50~1/100£¬000sec) |
| Mount |
CS |
| Auto Iris Lens |
VIDEO/DC |
| Working Voltage |
DC+12V¡À10% |
| working current |
85mA(AC24V)
200mA(DC12V) |
| Storage Temperature |
-30¡æ~+70¡æ |
| Operating Temperature |
-10¡æ~+40¡æ |

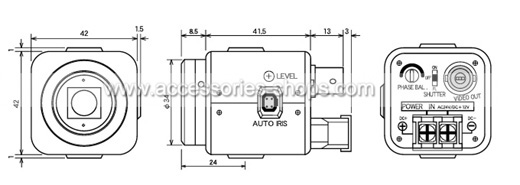

| outside dimensions |
43.5x44x67.5MM |
| Weight |
140g |
|
