The Watec WAT-231S Camera is a 1/3" formatted camera solution for those industries which demand image perfection. Watec's latest 1/3" color camera in the 200 series high resolution, fully adjustable- low light models provides the user convenience in miniature package. The Watec WAT-231S ability to set shutter speeds, correct video levels, set the back light and adjust the cameras dynamic light rages allow it to adhere to various light temperatures making this unit the preferred model in the Medical Imaging, Military, and Law Enforcement Industries.
The Watec WAT-231S camera is also available as a package kit solution coupled with our APAQ2000 series, outdoor waterproof housings.
Watec WAT-231S Features :
* Multi functions,
* High sensitivity,
* Simultaneous output of composite video & Y/C signals,
* White balance control,
* Shutter speed control,
* Electronic iris,
* Flickerless mode,
* AGC,
* Back light compensation,
* Gamma correction,
* Video level switch(100 IRE / 75 IRE),
* Video/DC iris auto-select,
* Iris level control
Watec WAT-231S Specifications:
| Model |
WAT-231S |
| image sensor |
1/3" CCD |
| Sensing area(pixel) |
P440K |
| Synchronizing System |
Internal Synchronization |
| scanning system |
2:1 |
| video output |
1Vpp-75¦¸ |
| Horizontal Resolution (Level) |
450Lines(Y/C480Lines) |
| Minimum illumination |
0.1Lux F1.2(AGC High) |
| Gain control |
Automatic gain control(dB) ON=8~36 (Hl) 8~24 (LO) OFF=8
|
| S/N ratio |
50dB |
| Gray properties |
¦Ã¨P0.45/1.0 |
| BLC |
ON/OFF |
| AES EI:OFF |
1/50~1/100,000 sec.
EI:FL 1/120~1/100,000 sec. |
| MEC |
(S)OFF(1/50),1/250,1/500,1/1000,1/2000,1/4000,1/10,000 |
| WB |
Auto/Fixed/3200K,4200K,5100K,6300K |
| Auto Iris Lens |
VIDEO/DC |
| Mount |
CS |
| Working Voltage |
DC+10V~15V |
| working current (mA) |
190 |
| Storage Temperature (¡æ ) |
-30~+70 |
| Operating Temperature (¡æ ) |
-10~+40 |

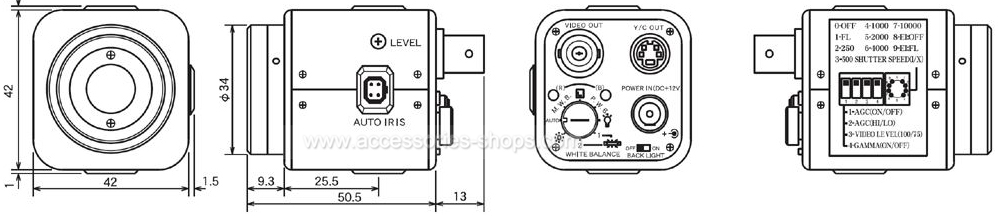

| Size W¡ÁH¡ÁL(mm) |
43.5¡Á44¡Á64.5 |
| Weight(G) |
160 |
|
