Suitable for monitoring, industrial testing equipment
Watec WAT-502B Camera Overview:
The Watec WAT-502B camera is one of the smallest and lightest CCTV box cameras available on the market. This makes it all the more surprising that the manufacturer was able to incorporate into its tiny frame most of the features found on larger and heavier box cameras. The Watec WAT-502B camera have a 1/3" CCD sensor, an auto iris function as well as a full complement of electronic controls. Working in concert, these enable the camera to produce visible images in light levels down to 0.003 lux. This level of low light sensitivity coupled with the camera's incredibly small size make it the camera of choice for residential or commercial applications looking for dependable yet minimally intrusive security monitoring.
Watec WAT-502B Camera Features:
* Ultra compact and lightweight camera suitable for discreet surveillance applications
* Excellent image quality with 1/3" CCD and 400 lines of resolution
* Operates in extremely low light levels (0.003 lux, F1.4)
* Auto iris function ensures properly exposed images in fluctuating light levels
* Back light compensation eliminates silhouetting in situations where the subject matter is brightly lit from behind
* Accepts industry standard CS mount lenses
Specifications:
| Model |
WAT-502B |
| CCD |
1/3" |
| Effective Pixels |
290K |
| Synchronizing System |
inter-sync |
| Scanning system |
2:1 |
| video output |
1Vpp-75¦¸ |
| Horizontal resolution |
400TVL |
| minimum illumination |
0.003LuxF1.4(AGCHigh) |
| automatic gain control |
5~32dB |
| SNR |
50dB |
| gray properties |
¦Ã¨P0.45 |
| Backlight compensation |
-- |
| Auto electronic shutter |
Fixed electronic shutter OFF(1/50)
Flicker Filter F.L(1/120)
Auto electronic shutter EI(1/50~1/100,000sec) |
| Auto Iris Lens |
VIDEO |
| Mount |
CS |
| Working Voltage |
DC+9V¡À10% |
| working current |
130mA |
| Storage Temperature |
-30¡æ~+70¡æ |
| Operating Temperature |
-10¡æ~+40¡æ |

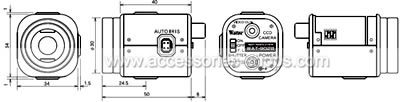

| outside dimensions |
31.5¡Á31¡Á54mm |
| Weight |
85g |
|
